Navigating the Complexities of Mold Cost Estimation
Accurately estimating costs for specialized molds and custom injection molded parts often prove daunting for first-time ilijecomix buyers. By understanding key determinants around part design, material selection, production volumes, and more, you can learn to decode mold maker quotes and budget appropriately.
Breaking Down Tooling Fabrication Expenses

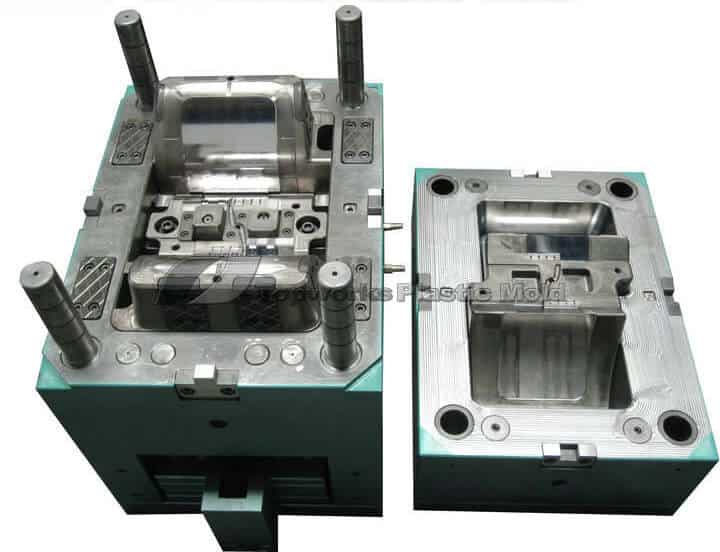

The intricacy of the steel mold constitutes the majority of an injection molding project’s upfront expenses. We’ll examine how factors like part dimensions, design optimization, surface finishes, machining methods, tooling materials and lifecycle assumptions dramatically sway fabrication costs.
Part Dimensions And Projected Lifetime Volume Impacts
Larger part geometries require bigger mold blocks, more machining time, and higher costs. Molds projected to produce over 1 million lifetime pieces across a decade see handlers design tooling more expensively from hardened beryllium copper alloys vs simpler P20 steel. Assumed yearly production volumes also dictate decisions on incorporating hot runners.
Design Optimization Complexity Effects
Parts with intricate interior geometries, deep draws, precision features, or texture demands take artful designers longer to perfect before steel cutting begins. Do these unblocked games wtf consultation hours get billed? Elaborating on cooling channel routing similarly adds expensive programming time. Minimize oblique angles and undercuts that complicate separation while maximizing draft angles to ease extraction – optimizing molds for manufacturability before quoting helps control expense.
Surface Finish Needs Raise Machining Difficulty
Mirror polishes mandate additional steps of semi-finishing hand polishing or intensive EDM burning achieving required smoothness, driving up tooling price tags. More machining hours equate directly to higher mold costs. If appearance matters less, lower grade mill finishes work.
Advanced Machining Techniques Also Inflate Fab Costs
From micromachining miniaturized medical molds barely visible to the human eye to holding nanometer tolerances through precision grinding processes, specialized cutting skills warrant premium machining shop rates and longer programming time investments by seasoned veterans. Know exactly what workforce software eleveo tolerance or feature thresholds the application requires.
Tooling Alloy Upgrades Add Up Too
Opting for beryllium copper instead of P20 steel or even aluminum for limited run tooling upgrades durability, enabling longer production batches before failure, but carries steeper price points. Heat treat finishes like nickel plating or nitriding bores for abrasion resistance provide added mold robustness but boost machining expenses proportionally.
Factors Influencing Production Prices Per Piece
Beyond tooling amortization driving initial project expenditures, variables like order quantities, material selection, quality expectations, secondary operations, packaging needs 02045996879 and inspection steps also significantly impact the per unit pricing sellers provide and overall part cost.
Order Volume Commitments Lower Per Unit Costs
Amortizing expensive machining costs over 5,000 cycles understandably necessitates higher per piece pricing than 500,000 lifetime production runs. Even relatively basic molds cost $10,000+ for US tools and $5,000+ in China. Lot sizes, order rhythm and annual volume forecasts guide pricing.
Material Selection Impacts Plastic Raw Material Expenses
Common resins like ABS and polypropylene plastic pellet feedstocks cost roughly $2.5-3.5/lb. Engineering grades like ULTEM PEI or PEEK plastic resins for structural components approach $6-10/lb. More exotic filled polymers with glass/carbon fibers or additives Internet Chicks reach up to $50/lb. These raw material expenses directly influence per part costs.
Tighter Quality Expectations And Tolerances Raise Molding Expenses
Streamlined validation processes matching looser ±.5mm dimensional tolerance requirements for simple polypropylene containers prove far more economical than highly controlled ±.05mm precision inspection procedures required when molding intricate medical grade thermoplastic components. Quality rigor aligns with costs.
Secondary Operations Also Add Price Multipliers
Pad printing decorative markings, ultrasonic welding assemblies, laser etching identifiers, vibration welding inserts, quality function performance testing, leak testing, precision metrology, special labeling, protective film application, intricate packaging, and other downstream production steps all incrementally increase the per unit pricing equation in proportion to their cycle time or equipment expenses required.
Packaging For Protection Equals Bigger Budgets
Delicate parts like electronics connectors or medical components needing secure trays, foam insulation and sturdy outer shipping cases to arrive at customers unharmed contributes real costs compared to simply bagging basic parts. Always clarify expected packaging durability levels upfront when sourcing pricing.
Stringent Inspection Steps Slow Speed And Raise Prices
Checking 1 out of every 5 parts made demands quality teams run at 20% efficiency to fulfill the same order volumes as lines skipping this oversight…and extensive inspection adds expenses reflected in quotations. Trusted manufacturers with robust process controls earn permission for reduced reviewing. High liability products require each unit checked.
Bringing Cost Estimating Techniques Together
With a solid grasp on the inputs impacting both mold fabrication and production costs respectively, we can start bringing together pragmatic forecasting frameworks to transform confusing custom part quotations into actionable budgets.
Leverage Mold Flow Simulation And Rapid Prototyping
Advanced CAD software now allows predicting injection molding manufacturability via virtual mold filling simulations and 3D printed prototype patterns help refine part geometry faster before locking steel machining expenses. Both speed optimal design faster.
Seek Design Feedback From Your Shortlist Of Vetted Manufacturers
Sharing initial 3D model renders or basic sketches with trusted custom molding partners early fosters collaborative fine tuning catered specifically to each shop’s specialized machining techniques while illuminating cost reduction opportunities. Few investments reap bigger rewards.
Map Bill Of Material Cost Drivers For Transparency
Catalog every custom part component influencing price formally from resins to labels. Establish supplier alternatives for comparison. Debugging the true costs behind opaque molded parts quotes grants smarter sourcing power. Test assumptions through supplier RFP bids.
While forecasting custom molding budgets will always remain challenging, clearly conveying special feature needs, probing for design feedback, and relentless analysis of what truly drives expenses provides tremendous clarity. Now put your knowledge to work as an empowered buyer able to stretch limited capital far smarter by unmasking injection molding’s cost paradigm one detail at a time.
